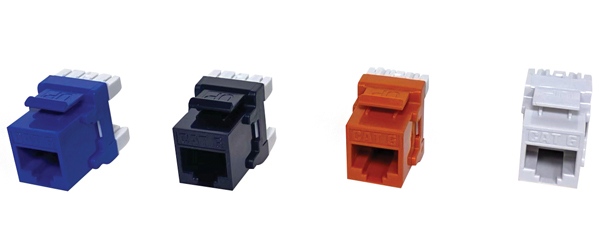

180º Cat 6 GIGASNAP Snap-In Jack

Short Description:
Atras RJ45 GIGASNAP 180º Cat 6 Snap-In Jack

Part Number:
ATS-6-180-B (Blue)
ATS-6-180-W (White)
ATS-6-180-O (Orange)
ATS-6-180-E (Black)

Spec Sheet PDF



The ATRAS® Snap-In jack is a high quality 8-position, 8-conductor 180° RJ45 insert with dual color-coded labeling consistent with T568A and T568B wiring standards. The jacks are UL94V-0 rated high-impact, flame-resistant plastic that exceed both component and channel performance requirements, and meet all UL, NEC Article 800, and FCC Part 68 standards.

Phosphor Bronze Alloy with 50 Micro-inch Gold over 100 Micro-inch Nickel Spring Wire

Phosphor Bronze Alloy with 100 Micro-inch (9:1) SN-PB Alloy IDC


Blue, White, Orange, Black

Electrical Resistance

> 500M Ohm @ 100VDC

Withstanding Voltage

1000V RMS @ 80 Hz for one minute

Contact Resistance

20M Ohm (Max)

Current Rating

1.5 AMP at 140°F

Total Contact Force

> 100 Grams per Contact Wire Lead


50N (11 BLF) for 60S ± 5S

IDC Wire Gauge

22 to 26 AWG
