90º Cat 6A GigaSnap Snap-In Jack

Short Description:
Atras RJ45 Cat 6A 90º Snap-In Jack

Part Number:
ATS-6A-B (Blue)
ATS-6A-W (White)
ATS-6A-O (Orange)
ATS-6A-E (Black)
ATS-6A-R (Red)
ATS-6A-T (Green)

Spec Sheet PDF

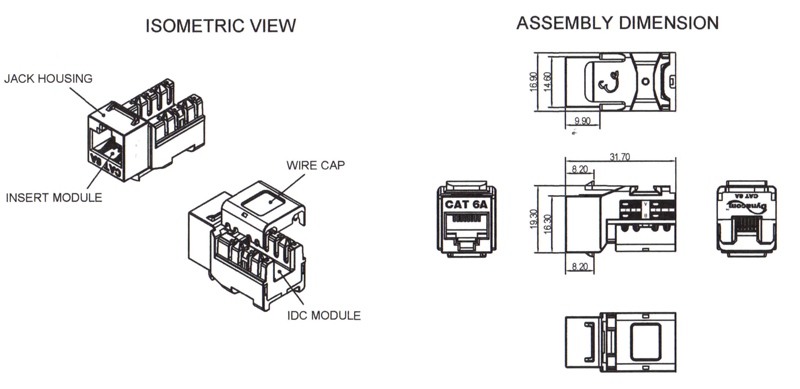

View Jack Diagram



The ATRAS® Snap-In jack is a high quality 90° RJ45 insert consistent with ANSI/TIA–568–C.2 Cat.6A wiring standards. The jacks are UL94V-0 rated high-impact, flame-resistant plastic that exceed both component and channel performance requirements. All connecting hardware 100% factory transmission performance tested.

Phosphor bronze alloy plated with 50 mirco-inch 100% SN alloy Spring Wire


Blue (B), White (W), Orange (O), Black (E), Red (R), Green (T)

Electrical insulation resistance

500M? min @ 100V d.c.

Dielectric withstanding voltage

d.c. or a.c. peak contact to contact @ 60Hz for 1 minute

Insertion / extraction life:

750 cycles min


High-impact, flame-retardant plastic, UL 94V-0

IDC Wire Gauge

22 to 26 AWG


• Jack installs to standard keystone port
• Compatible with KwikTool (P/N: 3190–KT)
