GIGASYSTEM Plenum Cat 6E

Short Description:
Atras GIGASYSTEM CAT 6E CMP Plenum (600 MHz), Available in 2 Colors

Part Number:
ATS-423CMP-6E-B (Blue)
ATS-423CMP-6E-W (White)

Box Type:
Easy-Pull Fast Pack

Downloads:
Spec Sheet PDF

View Wire Diagram

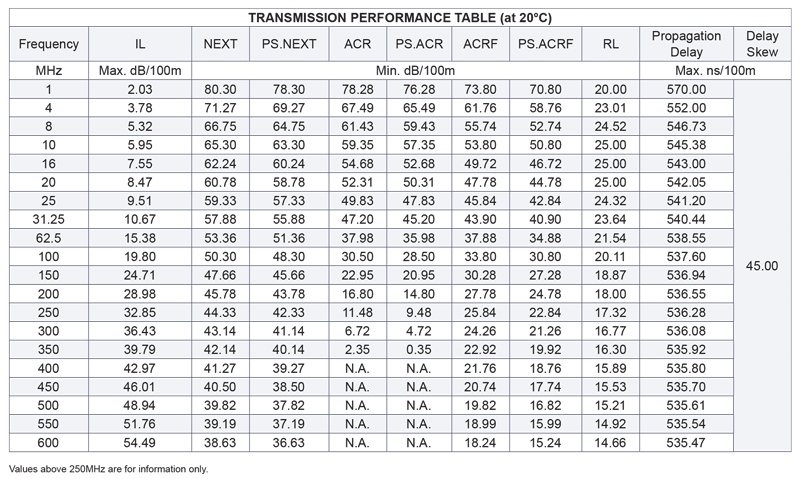

View Performance Table

ATS-423CMP-6E-*

Features:

  • High performance of transmission.
  • High quality of safety property.
  • Sweep frequency up to 600 MHz.
  • Reelex II carton and easy to pull out.
  • Carton with one layer corrugated design providing sufficient strength and saving packaging space.



Applications:

  • Structure cabling for horizontal and building backbone cable.
  • Transmission of digital and analogue for data, video and audio applications.
  • IEEE 802.3ab 1000BASE-T, 1000BASE-TX and legacy speeds.
  • CDDI / ATM / Token Ring
  • IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)



Applicable Standard:

Electrical Transmission

  • ANSI/TIA-568-C.2 (2009)
  • ISO/IEC 11801 (Edition 2.2)
  • IEC 61156-5 (Edition 2.1)

Flame Test

  • NFPA 262 (CMP)

Material and Construction

  • UL 444
  • CSA 22.2 NO.214

EU Directive 2011/65/EU & 2015/863/EU
EU Directive 2006/95/EC (LVD)
CE compliance date: 2010.01.01



Usage & Environmental Condition:

Temperature storage & shipping: -20°C to 75°C
Temperature installation: 0°C to 60°C
Temperature operation: -20°C to 60°C
Minimum bending radius: ≥ 4 times of overall diameter
Maximum pulling tension: ≤ 110 N



Physical & Electrical Characteristics (at 20°C):

Temperature rating: 75°C / 300V
Spark test: 2.5 KV DC
AC leakage current through overall jacket: ≤ 10mA (1.5KV AC)
Cable cold bend: -20°C for 4 hr
Conductor DC resistance: ≤ 9.38 Ω/100m
Resistance unbalance: ≤ 5%
Dielectric strength: 1.5 KV ac for 2 s
Insulation resistance: ≥ 5000 MΩ•km
Mutual capacitance: ≤ 5.6 nF/100m
Capacitance unbalance pair-to-ground: ≤ 330 pF/100m
NVP (Nominal Velocity of Propagation):  73.0

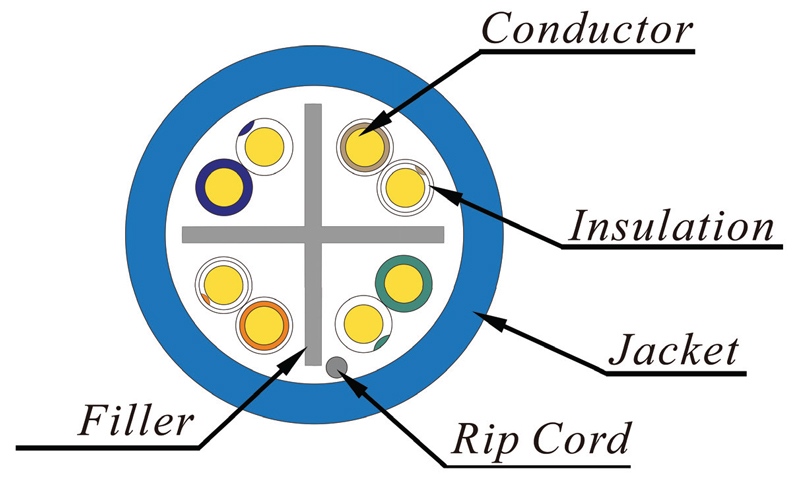

Colors

Blue, White

Conductor Material

23AWG solid bare copper

Insulation

Fluorinated Ethylene Propylene (FEP)
• Blue & white/blue stripe 0.95 ± 0.02 mm
• Green & white/green stripe 0.94 ± 0.02 mm
• Orange & white/orange stripe 0.92 ± 0.02 mm
• Brown & white/brown stripe 0.92 ± 0.02 mm

Twisted

Left Hand Direction

Filler

Polyolefin (PO)

Assembly

Left Hand Direction

Rip Cord

Polyester Multi-yarn

Jacket

Low smoke flame retardant polyvinyl chloride (LSFRPVC)
Diameter 5.6 ± 0.2 mm
Thickness 0.38 ± 0.03 mm

Marking

ATRAS ATS-423CMP-6E CAT 6E GIGASYSTEM PLUS TESTED TO 600MHz—E326692-W UTP 4PR 23AWG 75°C(UL)US CMP—ETL VERIFIED TO TIA-568.2-D ISO/IEC 11801-1 mmyy1 RoHS COMPLIANT XXXXFT

*mmyy is date code.
